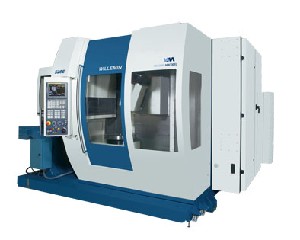

5 axes machining centre dedicated to applications in
Aviation-Aerospace Industry, Automotive Industry and high
precision Engineering
|
|
Longitudinal, X axis |
mm/in |
800/32 |
|
Tranversal, Y axis
|
mm/in |
500/20 |
|
Vertical, Z axis |
mm/in |
630/25 |
|
B
axis |
|
|
|
Movement
|
° |
0 to +110
|
|
Rotation speed |
RPM |
12 |
|
C
axis |
|
|
|
Movement
|
° |
360 |
|
Rotation speed |
RPM |
100 |
|
Ø T-slot table |
mm |
600 |
|
SPINDLE (with built-in motor) |
|
|
|
Spindle power |
KW/hp |
16/22
|
|
Standard
"pick-up" type
|
positions |
24
|
|
Fanuc |
|
31i-A5 |
| Heidenhain |
|
iTNC 530 |
| Siemens |
|
840D |
|
OPTIONS
-
Spindle speed: 12,000/20,000 RPM
-
Cartesian tool magazine (tool management):
72/180 positions
-
T-slot table 1200 x 1600 mm with space for
central divider
-
Filtration systems
-
High-pressure cooling through spindle at 80 bar
-
Cutting fluid thermostabilisation
-
Tool breakage detector and tool setting device
-
Part probing system
-
Palletizing system
|
|
