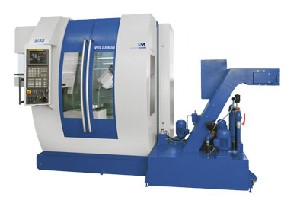

5 axis machining centres dedicated to applications
in Aviation - Aerospace Industry, Medical Industry,
Automotive Industry and high precision engineering
|
|
Longitudinal, X axis |
mm/in |
630/25 |
|
Tranversal, Y axis
|
mm/in |
320/13 |
|
Vertical, Z axis |
mm/in |
500/20 |
|
B
axis |
|
|
|
Movement
|
° |
-10 to +100
|
|
Rotation speed |
RPM |
50 |
|
C
axis |
|
|
|
Movement
|
° |
360 |
|
Rotation speed |
RPM |
100 |
|
Ø T-slot table |
mm |
400 |
|
SPINDLE (with built-in motor) |
|
|
|
Spindle power |
KW/hp |
S1:14/19, S6:16/22
|
|
Standard
"pick-up" type
|
positions |
24
|
|
OPTIONS
-
Cartesian tool magazine (tool management):
72/180 positions
-
Filtration systems
-
High-pressure cooling through spindle at 80 bar
-
Cutting fluid thermostabilisation
-
Tool breakage detector and tool setting device
-
Part probing system
-
Part loading and unloading robot
-
Palletizing system
|
|
