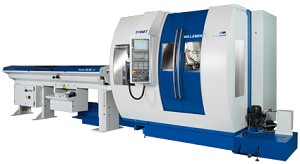

6-8 axis bar fed Mill-Turn
machining centreà la barre dedicated to industries such as mecical,
aviation and high precision engineering.
|
|
Longitudinal, X axis |
mm/in |
630/25 |
|
Tranversal, Y axis
|
mm/in |
320/13 |
|
Vertical, Z axis |
mm/in |
500/20 |
|
B
axis |
|
|
|
Movement
|
° |
-10 to +100
|
|
Rotation speed |
RPM |
50 |
|
A axis |
|
|
|
Movement
|
° |
360 |
|
Rotation speed |
RPM |
150 |
|
Max. bar stock Ø |
mm |
65 |
|
Rotation speed (turning) |
RPM |
3000 |
|
SPINDLE (with built-in motor) |
|
|
|
Spindle power |
KW/hp |
S1:14/19, S6:16/22 |
|
Standard on disk |
positions |
24
|
|
OPTIONS
-
Cartesian tool magazine (tool management):
72/180 positions
-
Back working device with 1, 2 or 3 working
positions:
-
Spindle/divider and/or vice and/or tailstock
-
Filtration systems
-
High-pressure cooling through spindle at 80 bar
-
Tool breakage detector and tool setting device
-
Part probing syste
-
Bar feed system or bar magazine
-
Part loading and unloading robot
|
|
