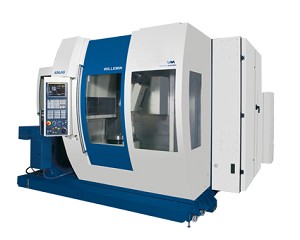

Super Precision 5 axis machining centre dedicated to
applications in Aviation-Aerospace Industry, Automotive
Industry, High Precision Industry.
|
|
SPECIFICATIONS |
|
518JIG |
528JIG |
|
Longitudinal, X axis |
mm |
630 |
800 |
|
Tranversal, Y axis
|
mm |
320 |
500 |
|
Vertical, Z axis |
mm |
500 |
630 |
| Linear axes resolution |
mm |
0.0001 |
0.0001 |
| B axis
movement |
° |
0 to +110 |
0 to +110 |
| B axis
rotation speed |
RPM |
50 |
12 |
| C axis
movement |
° |
360 |
360 |
| C axis
rotation speed |
RPM |
100 |
100 |
| |
|
|
|
|
OPTIONS
-
Cartesian tool magazine (tool management):
72/180 positions
-
Vapour treatment
-
High-pressure cooling through spindle at 80 bar
-
Tool breakage detector and tool setting device
-
Part probing system
-
Part loading and unloading robot (518JIG)
-
Palletizing system
|
|
