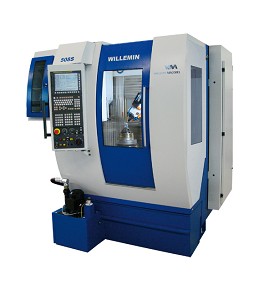

5-6 axes Machining centre for the manufacturing of complex
part dedicated to
applications in the medical field,
watch-making domains, precision mechanics
as well as for the manufacturing of industrial moulds.
|
|
Longitudinal, X axis |
mm/in |
450/18 |
|
Tranversal, Y axis
|
mm/in |
200/8 |
|
Vertical, Z axis |
mm/in |
425/17 |
|
B
axis |
|
|
|
Movement
|
° |
-15 to +100
|
|
Rotation speed |
RPM |
250 |
|
C
axis |
|
|
|
Movement
|
° |
360 |
|
Rotation speed |
RPM |
280 |
|
SPINDLE (with built-in motor) |
|
|
|
Spindle power |
KW/hp |
S1:10/13, S6:15/19
|
|
Standard on
disck |
positions |
24
|
|
Fanuc |
|
31i-A5 |
|
Heidenhain |
|
iTNC 530 |
|
OPTIONS
-
Spindle speed: 42,000 RPM
-
Tool magazine: 72 positions
-
T-slot table Ø 320 mm
-
Filtration systems
-
High-pressure cooling through spindle at 80 bar
-
Chip conveyor
-
Cutting fluid thermostabilisation
-
Tool breakage detector and tool setting devic
-
Part probing system
-
Part loading and unloading robot
|
|
