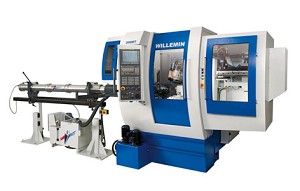

6-8 axis Mill-Turn bar fed
machining centre dedicated to applications in Industries
such
as Watch, Medical, Aviation,
and high precision engineering
|
|
Longitudinal, X axis |
mm/in |
450/18 |
|
Tranversal, Y axis
|
mm/in |
200/8 |
|
Vertical, Z axis |
mm/in |
425/17 |
|
B
axis |
|
|
|
Movement
|
° |
-15 to +100
|
|
Rotation speed |
RPM |
250 |
|
A axis |
|
|
|
Movement
|
° |
360 |
|
Rotation speed |
RPM |
300 |
|
Max. bar stock Ø |
mm |
42 |
|
Rotation speed (turning) |
RPM |
6000 |
|
SPINDLE (with built-in motor) |
|
|
|
Spindle power |
KW/hp |
S1:10/13, S6:15/19 |
|
Standard on disk |
positions |
24
|
|
OPTIONS
-
Spindle speed: 42,000 RPM
-
Back working device with 3 working positions on
turret:
-
Spindle/divider and/or vice and /or tailstock
-
Tool magazine: 72 positions
-
Filtration systems
-
High-pressure cooling through spindle at 80 bar
-
Chip conveyor
-
Tool breakage detector and tool setting device
-
Part probing system
-
Bar feed system or bar magazine
-
Part loading and unloading robot
|
|
