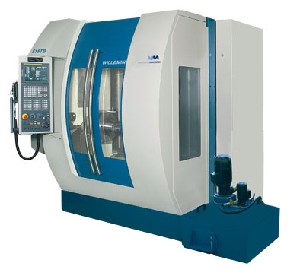

5-axis machining centre dedicated to applications in
avaition industry for the manufacturing of turbine blades.
|
|
SPECIFICATIONS |
|
508TB |
518TB |
528TB |
|
X axis |
mm/in |
450/18 |
630/25 |
800/32 |
|
Y axis |
mm/in |
200/8 |
320/13 |
500/20 |
|
Z axis |
mm/in |
425/17 |
500/20 |
630/25 |
|
ROTARY AXIS |
|
|
|
|
|
B axis |
|
|
|
|
|
Movement |
° |
-20 to +90 |
-45 to
+110 |
-45 to
+110 |
|
Rotation speed |
RPM |
250 |
150 |
12 |
|
A axis |
|
|
|
|
|
Movement |
° |
360 |
360 |
360 |
|
Rotation speed |
RPM |
280 |
200 |
200 |
|
SPINDLE |
|
|
|
|
|
Taper |
HSK |
E40 |
A63 |
A63 |
|
Spindle speed |
RPM |
30'000 |
20'000 |
12'000 |
|
Spindle power |
Kw/Hp |
10/13 |
23/31 |
22/30 |
|
BLADES |
|
|
|
|
|
Max length |
mm/in |
200/79 |
450/177 |
640/252 |
|
AUXILIARY SLIDE |
|
|
|
|
|
Travel |
mm |
500 |
900 |
900 |
|
Component |
|
Turning
Tailstock |
|
|
CNC |
|
|
|
|
|
Fanuc 31i
A5 / Heidenhain iTNC 530 / Siemens 840D |
|
| |
|
|
|
|
|
OPTIONS
-
Spindle speed: 42,000 RPM (508TB); 24,000 RPM
(518TB)
-
Full
CAD/CAM solution
-
Auxiliary slide with free rotation collet chuck
or auxiliary divider
-
Automatic part clamping
-
Filtration systems
-
High-pressure cooling through spindle at 80 bar
-
Chip
conveyor
-
Cutting fluid thermostabilisatio
-
Tool
breakage detector and tool setting device
-
Part
probing system
|
|
