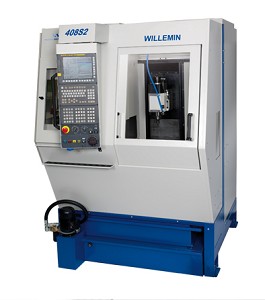

5 axis machining centre dedicatated to applications in Watch
Industry, Medical Industry and high precision Engineering
|
|
Longitudinal, X axis |
mm/in |
250/10
|
|
Tranversal, Y axis
|
mm/in |
200/8 |
|
Vertical, Z axis |
mm/in |
300/12 |
|
B axis |
|
|
|
Movement
|
|
+100 to -90 |
|
Rotation
speed |
RPM |
200
|
|
SPINDLE (with built-in motor) |
|
|
|
Spindle power |
KW/hp |
S1:10/13, S6:15/19
|
|
Standard on drum / "pick-up" type |
positions |
24
|
|
Fanuc |
|
Oi-MD |
|
Heidenhain |
|
iTNC 530 |
|
OPTIONS
-
Spindle speed: 42,000 RPM
-
Tool
magazine with rapid tool changer: 24 / 48
positions
-
Angular positioning of the motor-spindle with
hydraulic brake
-
Filtration systems
-
High-pressure cooling through spindle at 80 bar
-
Chip
conveyor
-
Cutting fluid thermostabilisation
-
Tool
breakage detector and tool setting devic
-
Part
probing system
-
Part
loading and unloading robot
|
|
