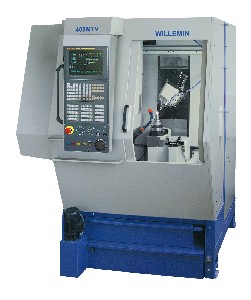

5-6 axis Mill-Turn machining centre dedicated to
applications in Watch Industry and high precision
Engineering
|
|
Longitudinal, X axis |
mm/in |
250/10
|
|
Tranversal, Y axis
|
mm/in |
200/8 |
|
Vertical, Z axis |
mm/in |
300/12 |
|
B
axis |
|
|
|
Movement
|
° |
-15 to +115
|
|
Rotation speed |
RPM |
20
|
|
A axis |
|
|
|
Movement
|
° |
360 |
Rotation speed
- Milling
- Turning with pneum. clamping
- Turning with hydraul. clamping |
RPM |
100
6'000
5'000 |
|
SPINDLE (with built-in motor) |
|
|
|
Spindle power |
KW/hp |
S1:10/13, S6:15/19
|
|
Standard on
disck |
positions |
24
|
|
OPTIONS
-
Spindle speed: 42,000 RPM
-
Hydraulic or vacuum clamping (A-axis)
-
Twin disc tool magazine: 48 / 96 positions
-
Filtration systems
-
High-pressure cooling through spindle at 80 bar
-
Chip conveyor
-
Cutting fluid thermostabilisation
-
Tool breakage detector and tool setting device
-
Part probing system
-
Part loading and unloading robot
|
|
