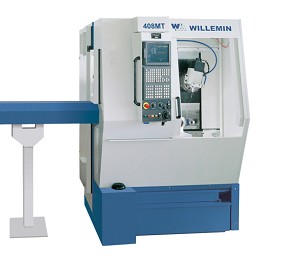

5-7 axis Mill-Turn bar fed machining centre
dedicated for applications in Watch Industry, Medical
Industry and precision Engineering
|
|
Longitudinal, X axis |
mm/in |
250/10 |
|
Tranversal, Y axis
|
mm/in |
200/8 |
|
Vertical, Z axis |
mm/in |
300/12 |
|
B
axis |
|
|
|
Movement
|
° |
-15 to +100
|
|
Rotation speed |
RPM |
20 |
|
A axis |
|
|
|
Movement
|
° |
360 |
|
Rotation speed |
RPM |
100 |
|
Max. bar stock Ø |
mm |
32 |
|
SPINDLE (with built-in motor) |
|
|
|
Spindle power |
KW/hp |
S1:10/13, S6:15/19 |
|
Standard on disk |
positions |
24
|
|
OPTIONS
-
Spindle speed: 42,000 RPM
-
Back working device with 1 working position:
vice or collet
-
Bar stock up to Ø 37
-
Hydraulic clamping (A-axis)
-
Twin disc tool magazine: 48 positions
-
Filtration systems
-
High-pressure cooling through spindle at 80 bar
-
Chip conveyor
-
Tool breakage detector and tool setting device
-
Part probing system
-
Bar feed system or bar magazine
-
Part loading and unloading robot
|
|
