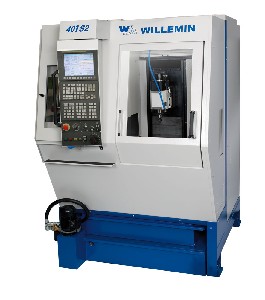

3-4-axis Machining centre dedicated to applications in watch
industry and high precision engineering |
|
Longitudinal, X axis |
mm/in |
250/10
|
|
Tranversal, Y axis
|
mm/in |
200/8 |
|
Vertical, Z axis |
mm/in |
300/12 |
|
T-slot table, size |
mm |
400 x 280
|
|
SPINDLE (with built-in motor) |
|
|
|
Spindle power |
KW/hp |
S1:10/13, S6:15/19
|
|
Standard on drum / "pick-up" type |
positions |
24
|
|
OPTIONS
-
401S2
watch industry configuration
-
Spindle speed: 42,000 RPM
-
Tool
magazine with rapid tool changer: 24 / 48 / 96
positions
-
Angular positioning of the motor-spindle with
hydraulic brake
-
Horizontal dividing head (4th axis) with
tailstock
-
Filtration systems
-
High-pressure cooling through spindle at 80 bar
-
Chip
conveyor
-
Cutting fluid thermostabilisation
-
Tool
breakage detector and tool setting device
-
Part
probing system
-
Part
loading and unloading robot
|
|
