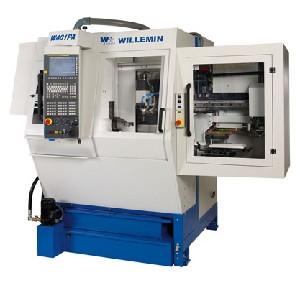

Full automatic high-precision multi-axis machining centre
with high autonomy. Complete machining of bridges, bottom
plates and other watch industry components from rectangular
shape blanks in a single cycle.
|
|
Longitudinal, X axis |
mm/in |
250/10 |
|
Tranversal, Y axis
|
mm/in |
200/8 |
|
Vertical, Z axis |
mm/in |
300/12 |
| Vertical slide, Wu axis |
mm/in |
120/4,8 |
|
A
axis
|
|
|
|
Movement
|
° |
360 |
|
Rotation speed |
min-1 |
100 |
| |
|
|
|
SPINDLE (with built-in motor) |
|
|
|
Spindle power |
KW/hp |
S1:10/13, S6:15/19 |
|
Standard on disk |
positions |
48 |
| Part loading
and unloading robot |
|
|
|
CNC
|
|
|
|
Fanuc |
|
31i-A5 |
| |
|
|
| |
|
|
|
OPTIONS
-
Spindle speed: 42,000 RPM
-
Filtration systems
-
Chip conveyor
-
Cutting fluid thermostabilisatio
-
Tool breakage detector and tool setting device
-
Part probing system
|
|
